On-Surface Dripline Tree/Shrub Detail

Elements

Canopies Drainage Reinforcing Site / Paving

About this detail

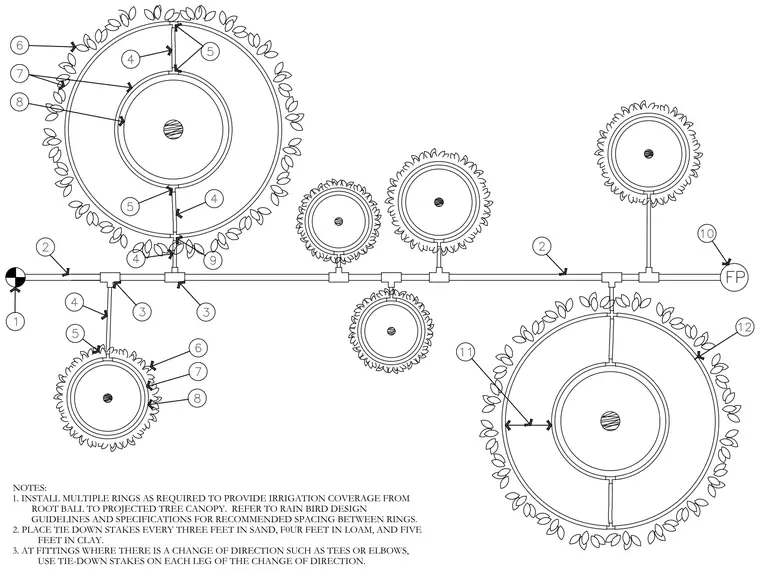

This irrigation assembly utilizes concentric dripline rings to provide coverage from the root ball to the projected tree canopy. Multiple rings are installed as required, with spacing determined by Rain Bird design guidelines. The system connects to a main supply line, with tie-down stakes placed every three feet in sand, four feet in loam, and five feet in clay. At fittings such as tees or elbows where the direction changes, tie-down stakes are required on each leg of the fitting.
