Double Door with Card Reader

Elements

About this detail

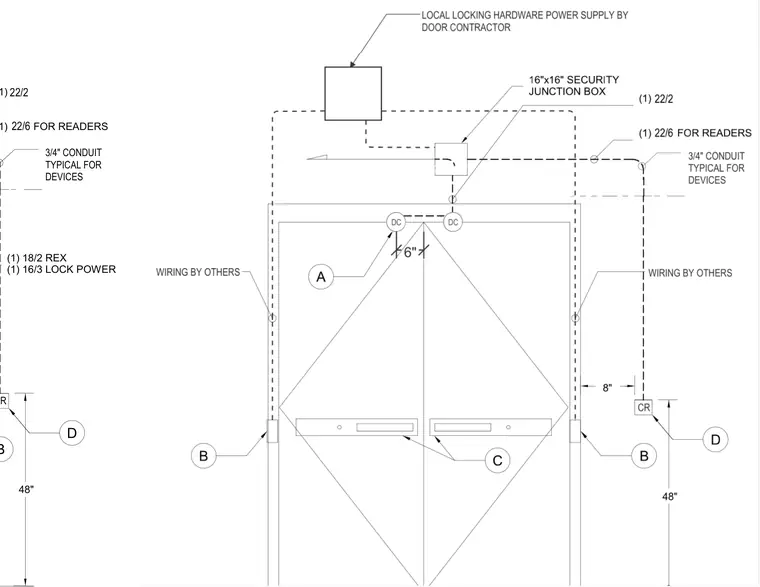

A double door assembly features card readers, local locking hardware, and a security junction box connected via three-quarter-inch conduit. Wiring includes eighteen-gauge two-conductor cables for request-to-exit devices, sixteen-gauge three-conductor cables for lock power, and twenty-gauge six-conductor cables for card readers. A sixteen-inch by sixteen-inch security junction box sits above the door frame. Local locking hardware power supply is provided by the door contractor, with additional wiring by others.
