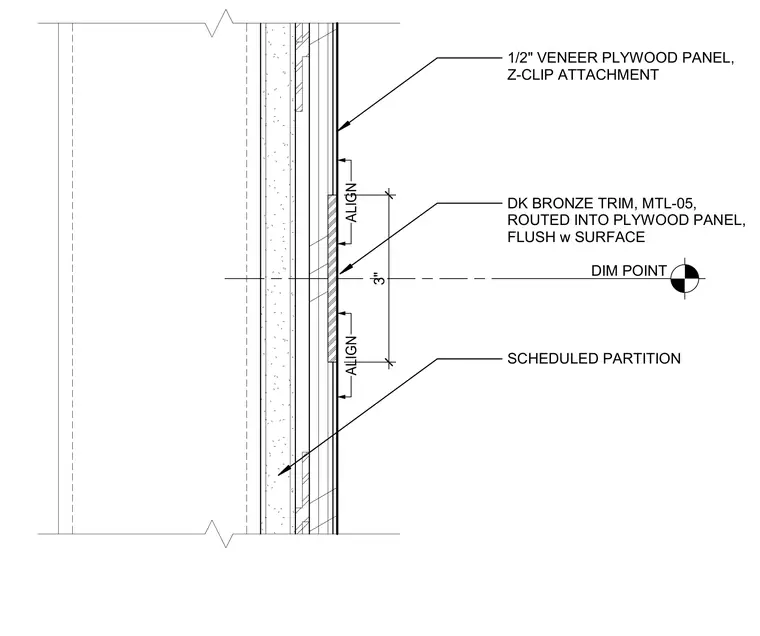

A dark bronze metal trim designated as MTL-05 is routed directly into the face of a one-half-inch veneer plywood panel to sit flush with the surface. The plywood panel is secured using a Z-clip attachment system mounted over a scheduled interior partition. The assembly maintains a three-inch vertical dimension aligned at the centerline of the trim element.
DIM POINT SCHEDULED PARTITION ALIGN ALIGN DK BRONZE TRIM, MTL-05, ROUTED INTO PLYWOOD PANEL, FLUSH w SURFACE 1/2" VENEER PLYWOOD PANEL, Z-CLIP ATTACHMENT 3"
