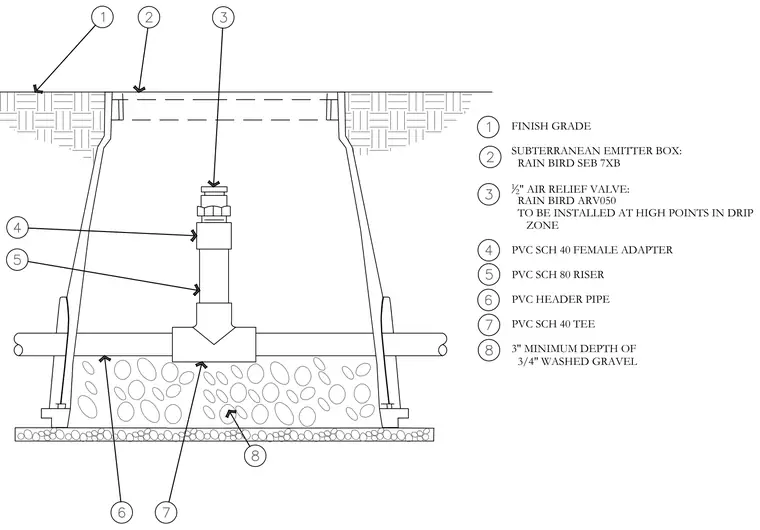

An air relief valve connects to a polyvinyl chloride schedule eighty riser fitted with a schedule forty female adapter, mounted onto a schedule forty tee at a high point in the PVC header pipe. The entire valve and riser assembly sits within a subterranean emitter box, flush with finish grade and bedded on a minimum three-inch depth of three-quarter-inch washed gravel.
FINISH GRADE SUBTERRANEAN EMITTER BOX: RAIN BIRD SEB 7XB 12 " AIR RELIEF VALVE: RAIN BIRD ARV050 TO BE INSTALLED AT HIGH POINTS IN DRIP ZONE PVC SCH 40 FEMALE ADAPTER PVC SCH 80 RISER PVC HEADER PIPE PVC SCH 40 TEE 3" MINIMUM DEPTH OF 3/4" WASHED GRAVEL
