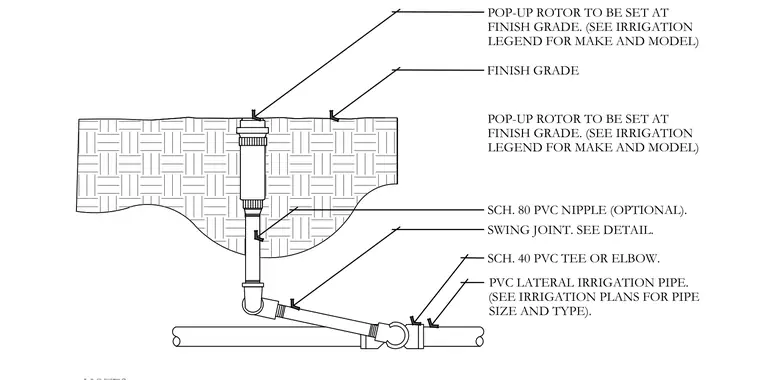

A pop-up rotor is set flush with the finish grade and connected to an optional Schedule 80 polyvinyl chloride nipple. A swing joint links the nipple to a Schedule 40 polyvinyl chloride tee or elbow. The assembly ties into the PVC lateral irrigation pipe, with sizing determined per the irrigation plans.
SCH. 80 PVC NIPPLE (OPTIONAL). SWING JOINT. SEE DETAIL. SCH. 40 PVC TEE OR ELBOW. PVC LATERAL IRRIGATION PIPE. (SEE IRRIGATION PLANS FOR PIPE SIZE AND TYPE). POP-UP ROTOR TO BE SET AT FINISH GRADE. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL) FINISH GRADE POP-UP ROTOR TO BE SET AT FINISH GRADE. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL)
