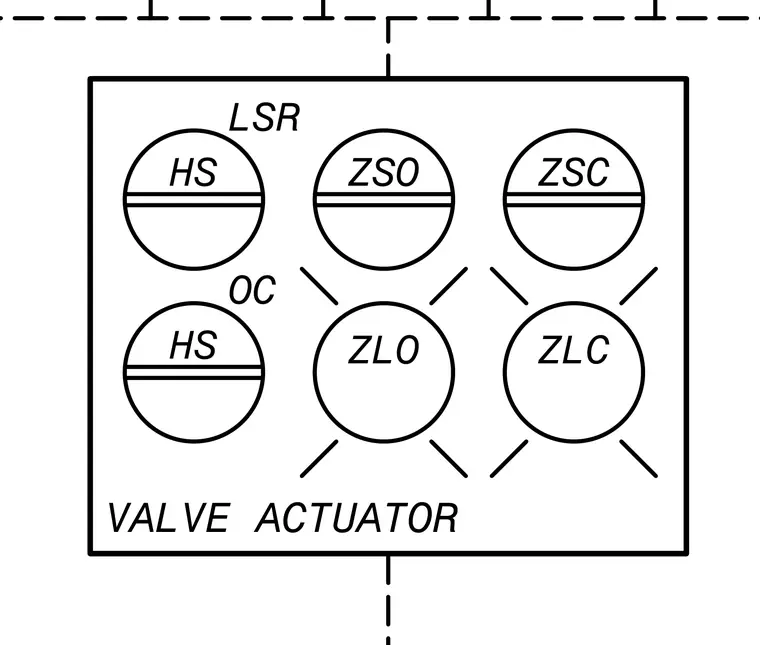

Valve actuator control diagram featuring status points including hand switch, valve open/closed limit switches, and open/closed position indicators.
