SCB Control Room PLC Processor Cabinet Wiring Diagram

Elements

Walls Millwork / Casework Connections / Plates

About this detail

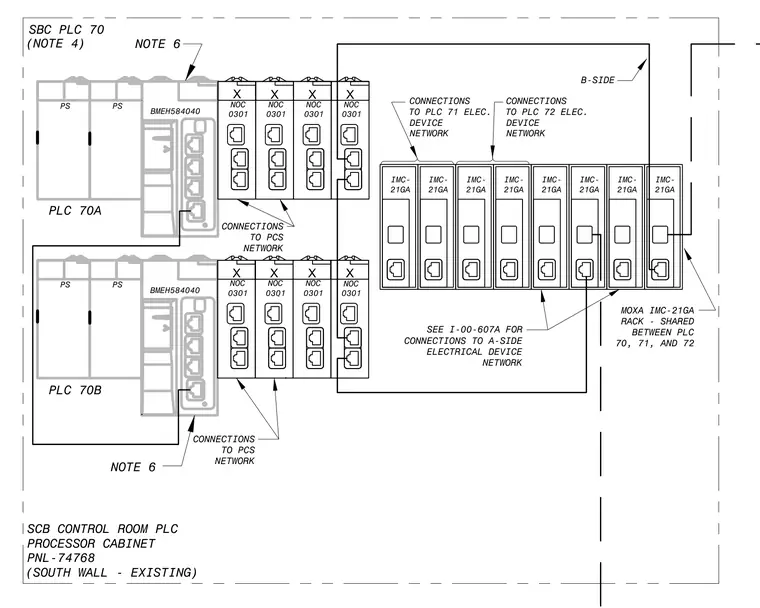

This diagram details the programmable logic controller processor cabinet layout for the SCB control room, featuring PLC 70A and PLC 70B units with power supplies and network modules. Modules include BMEH584040 processors and XNOC0301 communication modules linked to the process control system network. A shared Moxa IMC-21GA rack connects electrical device networks for PLCs 70, 71, and 72 on the B-side, with references to sheet I-00-607A for A-side connections. The existing panel assembly is located on the south wall.
