Base Cabinet with Appliance and Countertop Detail

Materials

Elements

About this detail

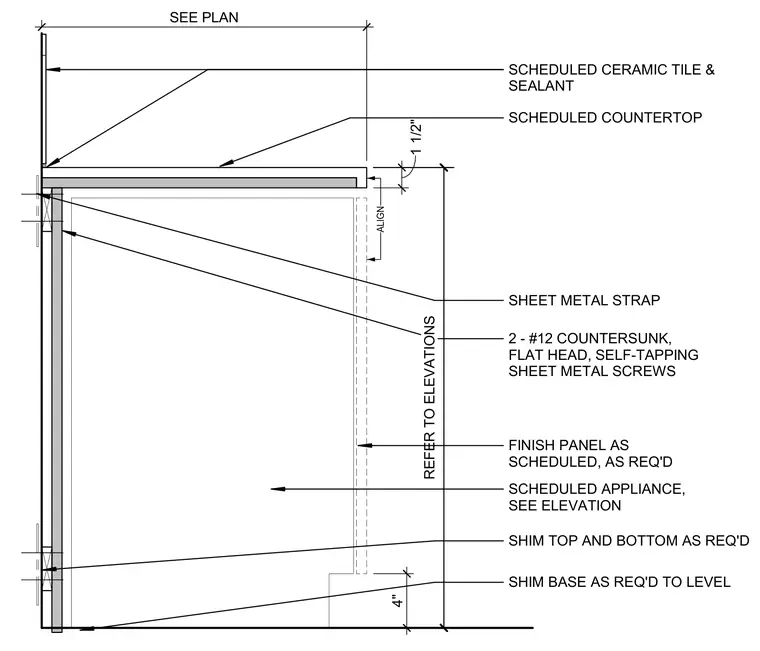

A base cabinet supports a scheduled one-and-a-half-inch countertop with ceramic tile and sealant at the backsplash. The cabinet unit is anchored using sheet metal straps fastened with two number twelve countersunk flat head self-tapping sheet metal screws. Shims are placed at the top and bottom as required, and the base is shimmed to level. A finish panel aligns with the cabinet face, and a scheduled appliance fits within the interior volume.
