Electrical · I-Q5686

Centrifuge Feed Pump Control and Instrumentation Diagram

About this detail

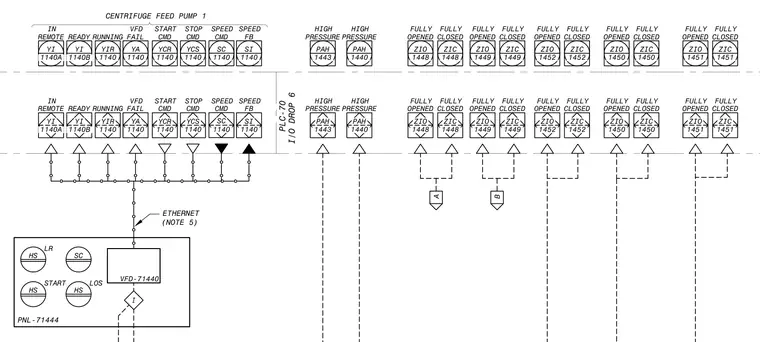

Control, monitoring, and instrumentation wiring for Centrifuge Feed Pump 1, interfaced through PLC-70 I/O Drop 6. The system incorporates variable frequency drive VFD-71440 connected via Ethernet with speed command, feedback, start, stop, and VFD fault signals. Pressure high indicators PAH 1440 and PAH 1443 provide process monitoring alongside multiple valve position indicators for fully opened and closed states. Local control panel PNL-71444 houses local-remote selector switches, start controls, and speed setpoints.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
