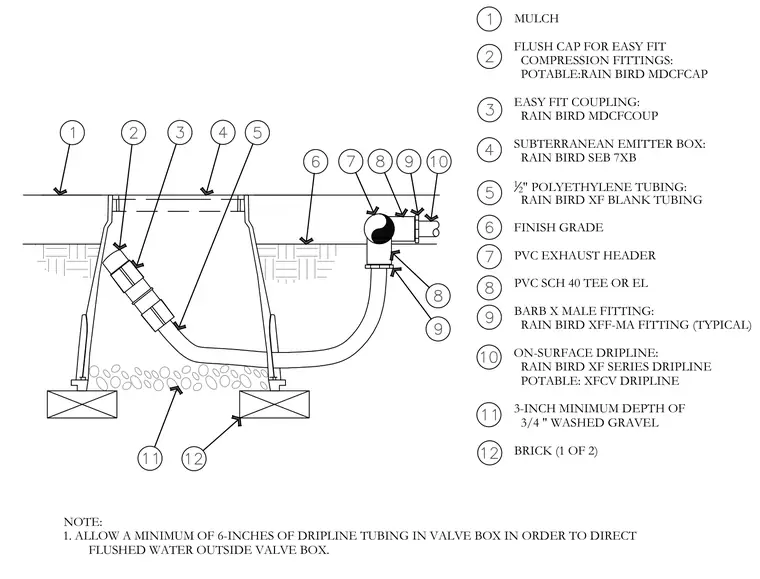

An on-surface dripline flush point assembly is housed in a subterranean emitter box beneath finish grade and a layer of mulch. The assembly features a flush cap for easy fit compression fittings, an easy fit coupling, and a half-inch polyethylene tubing connected to a PVC exhaust header via a schedule 40 tee or elbow and barb by male fittings. The emitter box is set over a three-inch minimum depth of three-quarter-inch washed gravel and brick supports. A note requires allowing a minimum of six inches of dripline tubing in the valve box to direct flushed water outside the valve box.
MULCH FLUSH CAP FOR EASY FIT COMPRESSION FITTINGS: POTABLE:RAIN BIRD MDCFCAP EASY FIT COUPLING: RAIN BIRD MDCFCOUP SUBTERRANEAN EMITTER BOX: RAIN BIRD SEB 7XB 12 " POLYETHYLENE TUBING: RAIN BIRD XF BLANK TUBING FINISH GRADE PVC EXHAUST HEADER PVC SCH 40 TEE OR EL BARB X MALE FITTING: RAIN BIRD XFF-MA FITTING (TYPICAL) ON-SURFACE DRIPLINE: RAIN BIRD XF SERIES DRIPLINE POTABLE: XFCV DRIPLINE 3-INCH MINIMUM DEPTH OF 3/4 " WASHED GRAVEL BRICK (1 OF 2) NOTE: 1. ALLOW A MINIMUM OF 6-INCHES OF DRIPLINE TUBING IN VALVE BOX IN ORDER TO DIRECT FLUSHED WATER OUTSIDE VALVE BOX.
