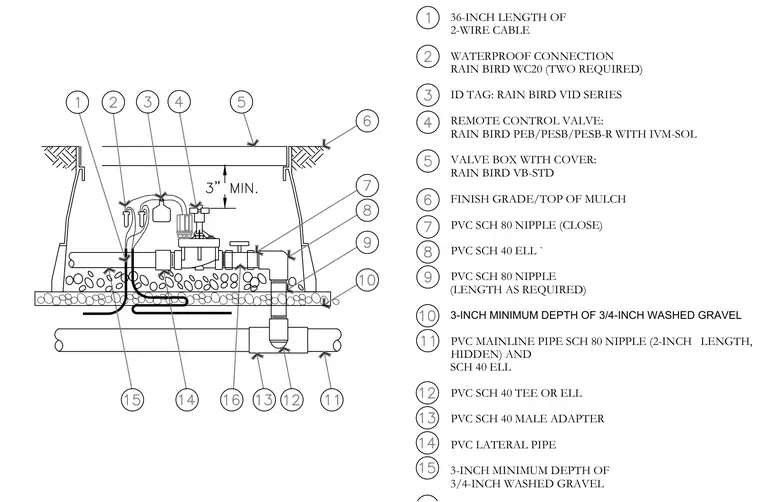

An underground remote control valve is housed inside a standard valve box with a cover positioned flush with the finish grade and top of mulch. The valve connects to PVC Schedule 80 nipples, Schedule 40 elbows, tees, and male adapters linking mainline and lateral PVC piping. Waterproof wire connections and an identification tag attach to a 36-inch length of 2-wire cable. The entire assembly rests on a 3-inch minimum depth bed of 3/4-inch washed gravel.
36-INCH LENGTH OF 2-WIRE CABLE WATERPROOF CONNECTION RAIN BIRD WC20 (TWO REQUIRED) ID TAG: RAIN BIRD VID SERIES REMOTE CONTROL VALVE: RAIN BIRD PEB/PESB/PESB-R WITH IVM-SOL VALVE BOX WITH COVER: RAIN BIRD VB-STD FINISH GRADE/TOP OF MULCH PVC SCH 80 NIPPLE (CLOSE) PVC SCH 40 ELL ` PVC SCH 80 NIPPLE (LENGTH AS REQUIRED) 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL PVC MAINLINE PIPE SCH 80 NIPPLE (2-INCH LENGTH, HIDDEN) AND SCH 40 ELL PVC SCH 40 TEE OR ELL PVC SCH 40 MALE ADAPTER PVC LATERAL PIPE 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL
