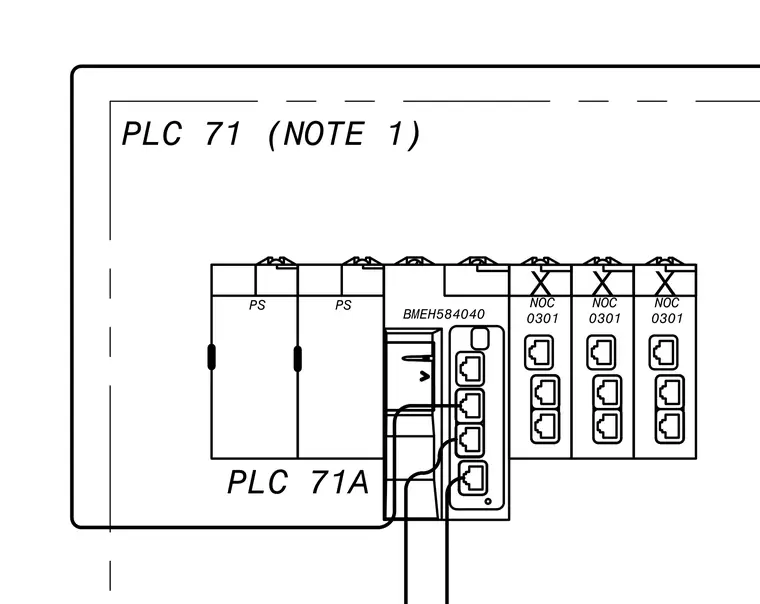

PLC 71 layout featuring model BMEH584040 processor, dual power supply units marked PS, and three NOC 0301 network communication modules. Cable connections link the central processor unit to the adjacent communication modules.
