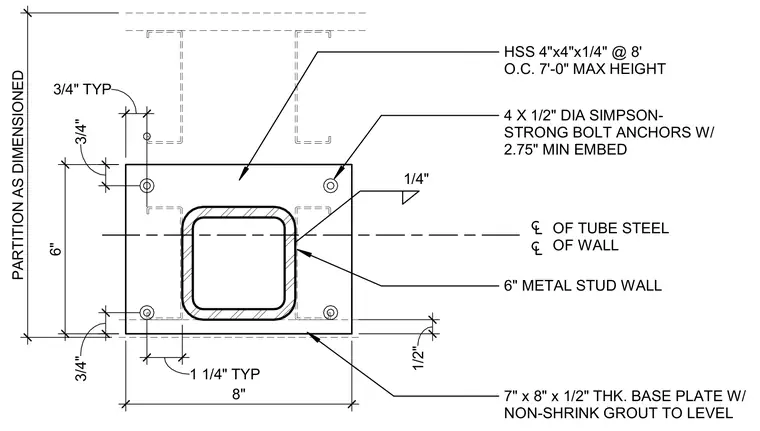

A hollow structural section column measuring four by four inches with a one-quarter-inch wall thickness is centered on a seven-by-eight-inch base plate of one-half-inch thickness. The base plate rests on a bed of non-shrink grout for leveling and is secured by four one-half-inch diameter Simpson Strong-Bolt anchors with a two-and-three-quarter-inch minimum embedment. The assembly aligns with a six-inch metal stud wall spaced at eight feet on center with a seven-foot maximum height.
HSS 4"x4"x1/4" @ 8' O.C. 7'-0" MAX HEIGHT 3/4" TYP PARTITION AS DIMENSIONED 6" 3/4" 3/4" 8" 1 1/4" TYP OF TUBE STEEL OF WALL 6" METAL STUD WALL 7" x 8" x 1/2" THK. BASE PLATE W/ NON-SHRINK GROUT TO LEVEL 1/4" 4 X 1/2" DIA SIMPSON- STRONG BOLT ANCHORS W/ 2.75" MIN EMBED 1/2"
