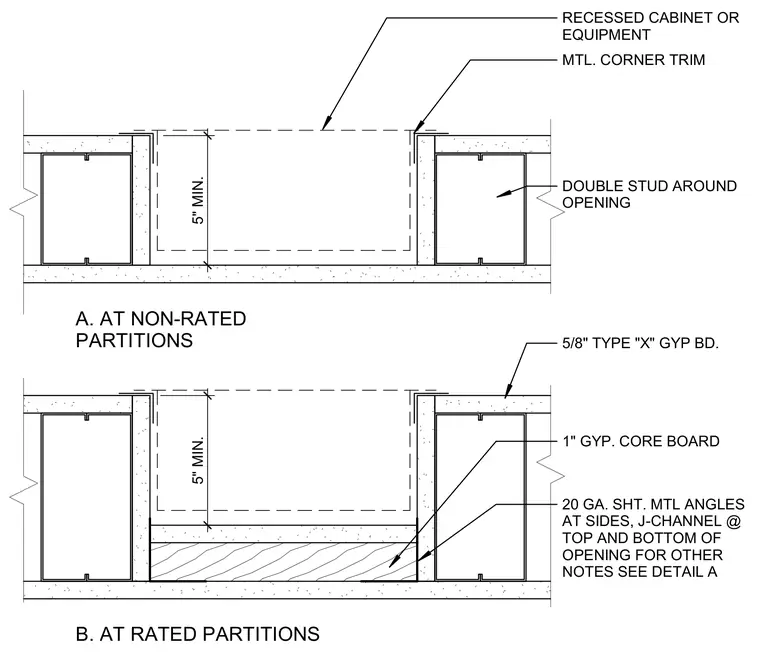

A recessed cabinet or equipment opening framed within both non-rated and fire-rated metal stud partitions. Openings are constructed with double studs around the perimeter and finished with metal corner trim. Non-rated partitions utilize standard gypsum board finishes, while rated partitions incorporate five-eighths-inch Type X gypsum board backed by a one-inch gypsum core board. Twenty-gauge sheet metal angles line the sides, with J-channel installed at the top and bottom of the opening.
MTL. CORNER TRIM 5" MIN. 5" MIN. RECESSED CABINET OR EQUIPMENT DOUBLE STUD AROUND OPENING B. AT RATED PARTITIONS 5/8" TYPE "X" GYP BD. 1" GYP. CORE BOARD 20 GA. SHT. MTL ANGLES AT SIDES, J-CHANNEL @ TOP AND BOTTOM OF OPENING FOR OTHER NOTES SEE DETAIL A A. AT NON-RATED PARTITIONS
