Telecommunications Grounding and Bonding Rack Details

Elements

About this detail

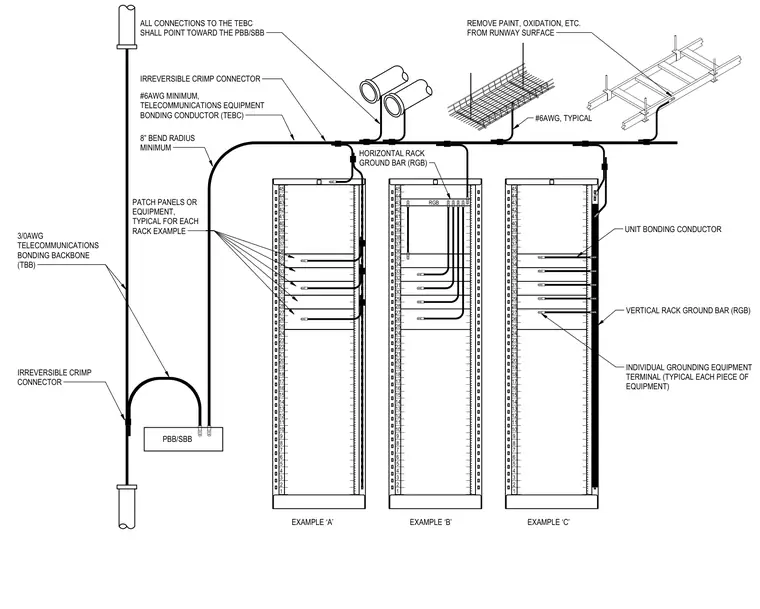

Telecommunications grounding and bonding connections across equipment racks utilize a 3/0 American Wire Gauge telecommunications bonding backbone connected via irreversible crimp connectors to a primary telecommunications ground busbar. Number 6 American Wire Gauge telecommunications equipment bonding conductors link individual racks featuring a minimum 8-inch bend radius, pointing toward the main busbar. Horizontal and vertical rack ground bars tie into the unit bonding conductors, while cable runway surfaces require paint and oxidation removal prior to connection. Individual equipment terminals connect directly to the vertical rack ground bar for each piece of equipment.
