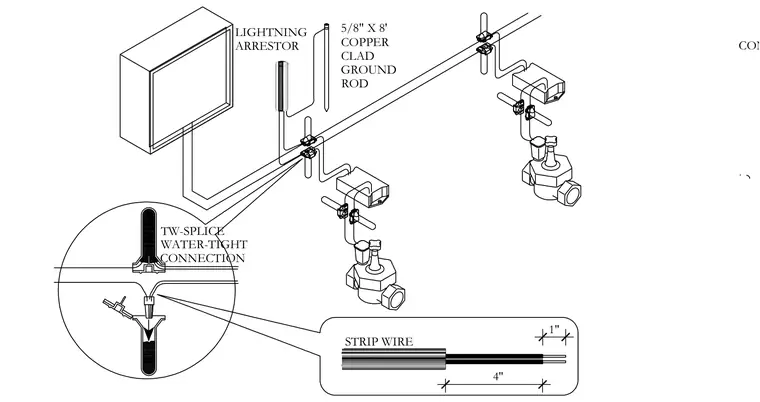

A two-wire control system runs alongside irrigation valves with waterproof TW-Splice connections and wire strippings measuring four inches overall with one inch stripped ends. A lightning arrestor connects to a five-eighths inch by eight foot copper clad ground rod via conduit and sweep. Waterproof connections seal the wiring runs to protect against moisture intrusion.
LIGHTNING ARRESTOR 5/8" X 8' COPPER CLAD GROUND ROD TW-SPLICE WATER-TIGHT CONNECTION STRIP WIRE CONDUIT AND SWEEP FOR 4" 1" ' ^ 0 0 *-1 + !Ly
