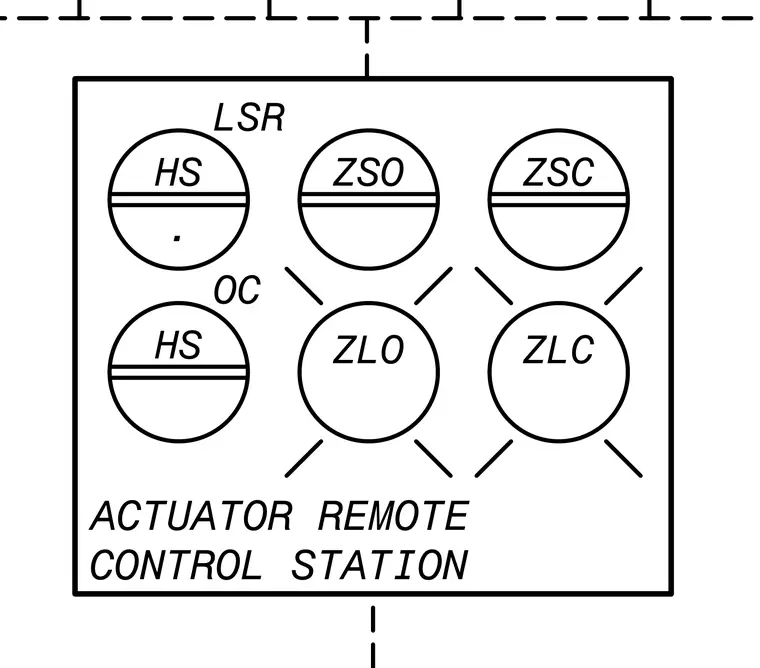

An actuator remote control station includes two hand switches designated as HS, along with status indicator lights for open and closed positions including ZSO, ZSC, ZLO, and ZLC. The unit integrates with a limit switch relay designated as LSR and connects via dashed control wiring lines.
HS OC ZSO ZLO ZSC ZLC HS . LSR ACTUATOR REMOTE CONTROL STATION
