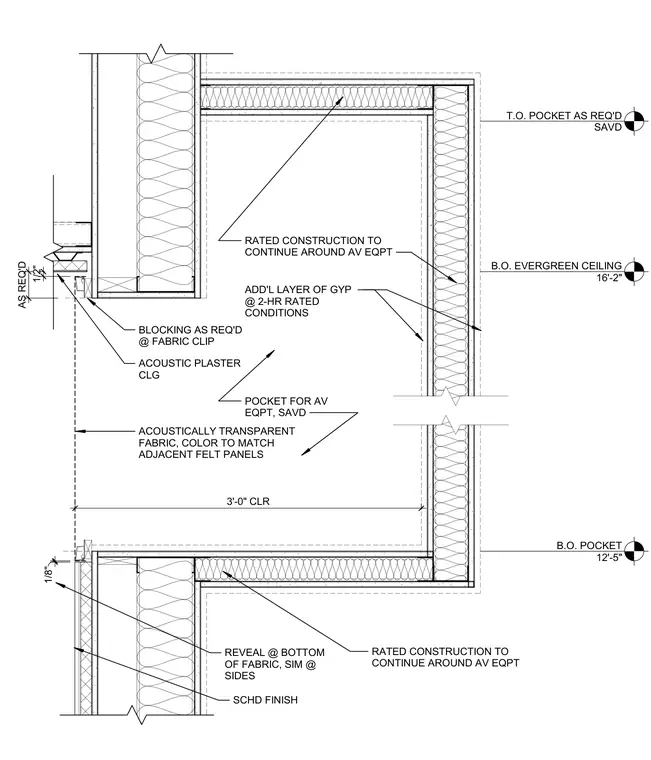

An audio-visual equipment pocket is integrated into a rated wall and ceiling assembly, providing a three-foot clear dimension. An additional layer of gypsum board is installed at two-hour rated conditions, with rated construction continuing entirely around the pocket. Acoustic plaster ceiling reveals are provided at the bottom and sides of the fabric, matching adjacent felt panels. Blocking is installed as required at the fabric clip with scheduled finishes.
SCHD FINISH 1/8" BLOCKING AS REQ'D @ FABRIC CLIP ACOUSTICALLY TRANSPARENT FABRIC, COLOR TO MATCH ADJACENT FELT PANELS ADD'L LAYER OF GYP @ 2-HR RATED CONDITIONS RATED CONSTRUCTION TO CONTINUE AROUND AV EQPT POCKET FOR AV EQPT, SAVD 3'-0" CLR B.O. EVERGREEN CEILING 16'-2" 1/2" RATED CONSTRUCTION TO CONTINUE AROUND AV EQPT B.O. POCKET 12'-5" AS REQ'D T.O. POCKET AS REQ'D SAVD ACOUSTIC PLASTER CLG REVEAL @ BOTTOM OF FABRIC, SIM @ SIDES
