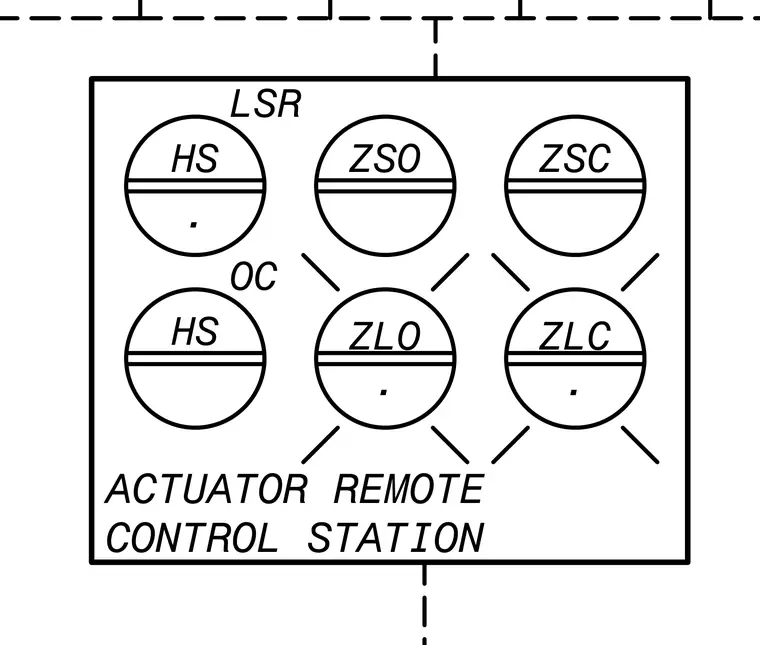

An actuator remote control station featuring a hand switch, open, and close status indicators. The station layout incorporates local selector relays and open-close control logic.
ACTUATOR REMOTE CONTROL STATION HS OC ZSO ZSC HS . LSR . ZLO . ZLC
