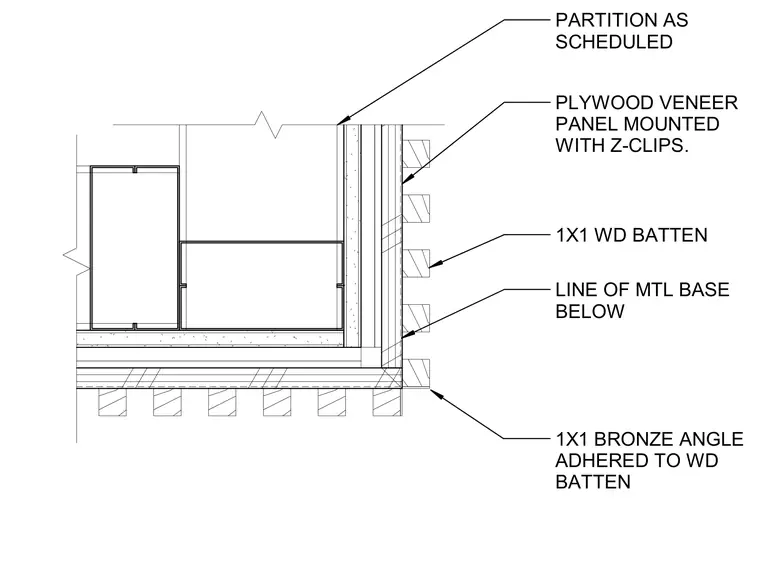

The assembly features a plywood veneer panel mounted to the partition with Z-clips. One-inch by one-inch wood battens attach across the face of the panel. A one-inch by one-inch bronze angle adheres to the wood batten above the metal base line.
PARTITION AS SCHEDULED PLYWOOD VENEER PANEL MOUNTED WITH Z-CLIPS. 1X1 WD BATTEN 1X1 BRONZE ANGLE ADHERED TO WD BATTEN LINE OF MTL BASE BELOW
