Drip Control Zone Kit Detail

Elements

Waterproofing / Flashing Connections / Plates

About this detail

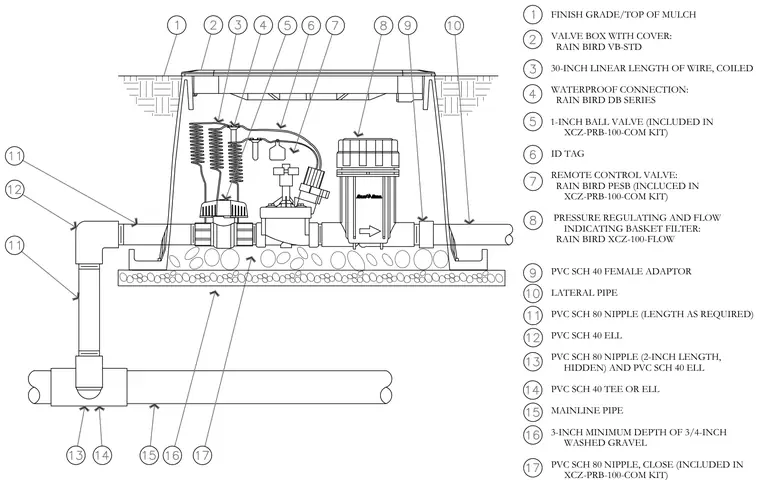

An irrigation drip control zone assembly is housed within a standard linear valve box set flush with the finish grade and top of mulch. The valve box rests on a minimum three-inch depth layer of three-quarter-inch washed gravel bedding. The assembly connects to the mainline pipe via PVC schedule eighty close nipples and a PVC schedule forty tee or ell. A PVC schedule eighty nipple of required length and PVC schedule forty ell route water upward to the control group. The internal plumbing components include a one-inch ball valve, a remote control valve, and a pressure regulating and flow indicating basket filter, joined with PVC schedule forty female adaptors and schedule eighty nipples. Waterproof wire connections join coiled thirty-inch lengths of wire, while an identification tag marks the remote control valve assembly. Lateral piping exits the filter and extends out of the valve box to supply the irrigation zones.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
