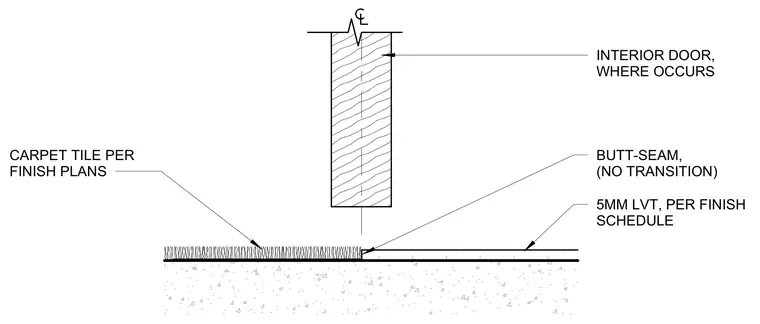

Carpet tile per finish plans meets five-millimeter luxury vinyl tile per finish schedule in a direct butt-seam with no transition strip. The floor finishes meet directly below the centerline of an interior door where it occurs.
5MM LVT, PER FINISH SCHEDULE BUTT-SEAM, (NO TRANSITION) CARPET TILE PER FINISH PLANS INTERIOR DOOR, WHERE OCCURS
