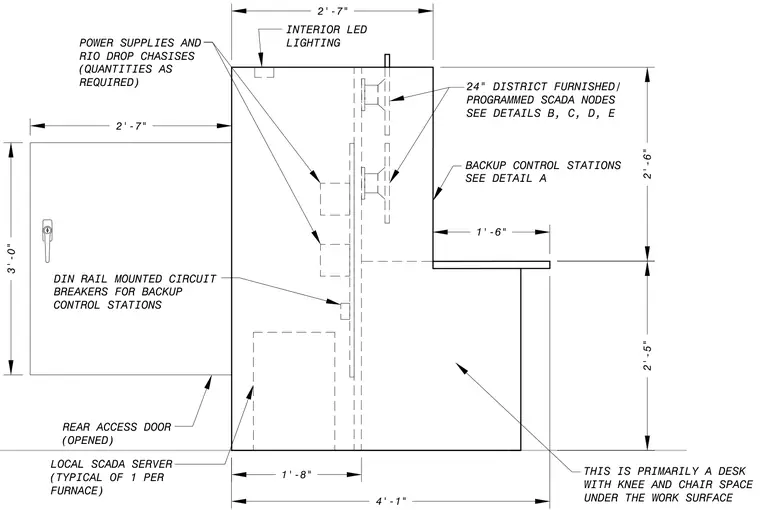

An angled console section shows an interior workstation with a work surface providing knee and chair space below. A rear access door opens to house power supplies and remote I/O drop chassis as required. Internal components include DIN rail mounted circuit breakers for backup control stations, interior LED lighting, and a local supervisory control and data acquisition server. District furnished and programmed supervisory control and data acquisition nodes mount inside alongside backup control stations.
REAR ACCESS DOOR (OPENED) BACKUP CONTROL STATIONS SEE DETAIL A 24" DISTRICT FURNISHED/ PROGRAMMED SCADA NODES SEE DETAILS B, C, D, E 2'-7" 1'-6" 4'-1" 2'-5" 2'-6" 2'-7" 3'-0" 1'-8" POWER SUPPLIES AND RIO DROP CHASISES (QUANTITIES AS REQUIRED) THIS IS PRIMARILY A DESK WITH KNEE AND CHAIR SPACE UNDER THE WORK SURFACE DIN RAIL MOUNTED CIRCUIT BREAKERS FOR BACKUP CONTROL STATIONS INTERIOR LED LIGHTING LOCAL SCADA SERVER (TYPICAL OF 1 PER FURNACE)
