An on-surface dripline flush point assembly is housed within a subterranean emitter box resting on a minimum three-inch depth of three-quarter-inch washed gravel below finish grade. The assembly connects half-inch polyethylene blank tubing through an easy fit compression coupling and flush cap to an on-surface dripline. A barb by male fitting links the tubing to a PVC schedule forty tee or elbow on a PVC exhaust header. A minimum of six inches of dripline tubing is provided inside the valve box to direct flushed water outside the enclosure.

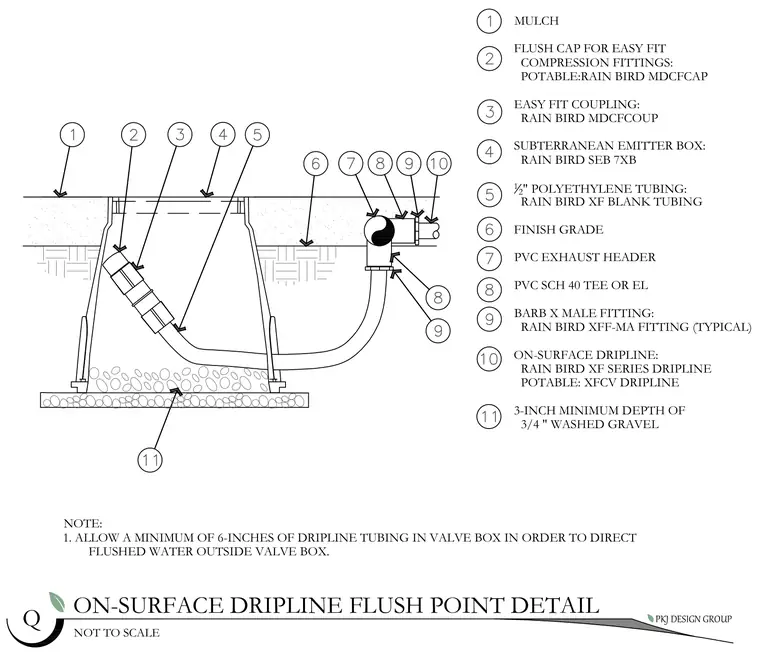

MULCH FLUSH CAP FOR EASY FIT COMPRESSION FITTINGS: POTABLE:RAIN BIRD MDCFCAP EASY FIT COUPLING: RAIN BIRD MDCFCOUP SUBTERRANEAN EMITTER BOX: RAIN BIRD SEB 7XB 12 " POLYETHYLENE TUBING: RAIN BIRD XF BLANK TUBING FINISH GRADE PVC EXHAUST HEADER PVC SCH 40 TEE OR EL BARB X MALE FITTING: RAIN BIRD XFF-MA FITTING (TYPICAL) ON-SURFACE DRIPLINE: RAIN BIRD XF SERIES DRIPLINE POTABLE: XFCV DRIPLINE 3-INCH MINIMUM DEPTH OF 3/4 " WASHED GRAVEL NOTE: 1. ALLOW A MINIMUM OF 6-INCHES OF DRIPLINE TUBING IN VALVE BOX IN ORDER TO DIRECT FLUSHED WATER OUTSIDE VALVE BOX. PKJ DESIGN GROUP ON-SURFACE DRIPLINE FLUSH POINT DETAIL NOT TO SCALE Q © 2 3 2 3 4 5 1 © 6 (7) 8 9 (10 / m 6 © 8 8 9 ©©©©©I© 11 v
