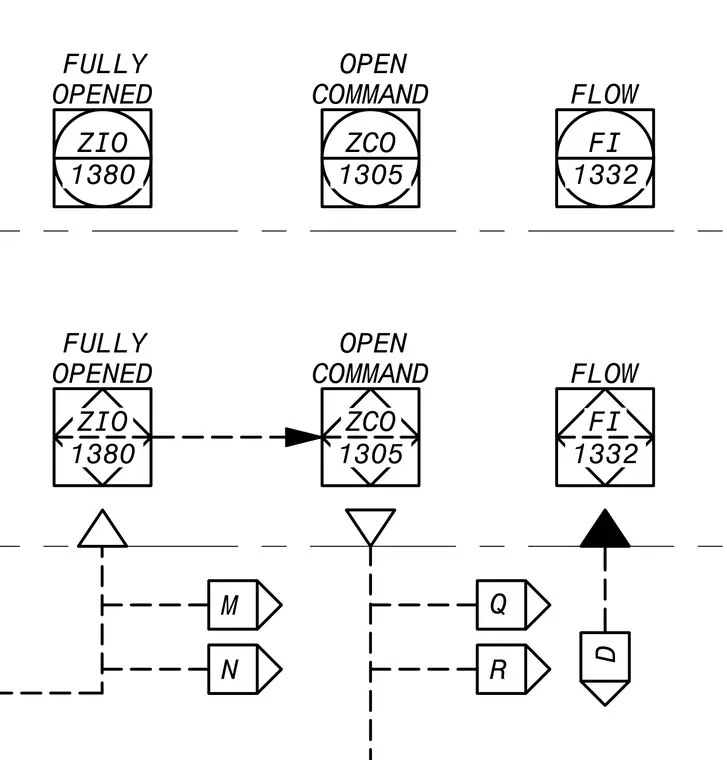

Signal and control logic diagram showing fully opened status ZIO 1380, open command ZCO 1305, and flow indicator FI 1332 states connected via dashed signal paths with associated input and output points.
D FI 1332 FLOW FI 1332 FLOW M ZIO 1380 OPENED FULLY ZIO 1380 OPENED FULLY N ZCO 1305 COMMAND OPEN ZCO 1305 COMMAND OPEN Q R
