Interiors · I-MJPV6

Marker Board Frame at Gypsum Wall Partition

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

About this detail

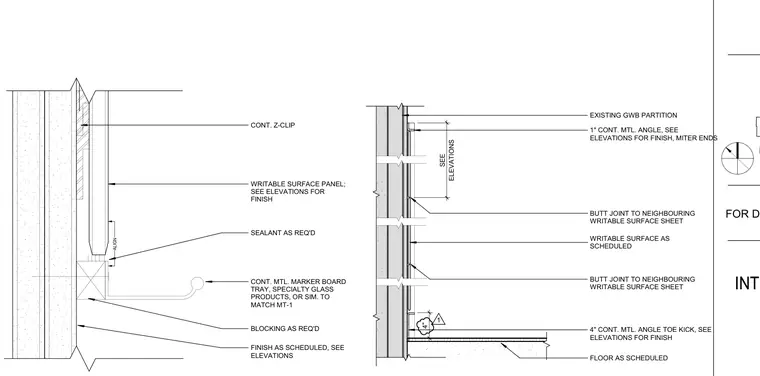

The assembly is anchored to an existing gypsum wallboard partition backed by wood blocking as required. A continuous metal z-clip supports the writable surface panel, which features butt joints to neighboring writable surface sheets. A continuous metal marker board tray is installed below with alignment sealant as required. A four-inch continuous metal angle toe kick is positioned at the base above the floor finish.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
