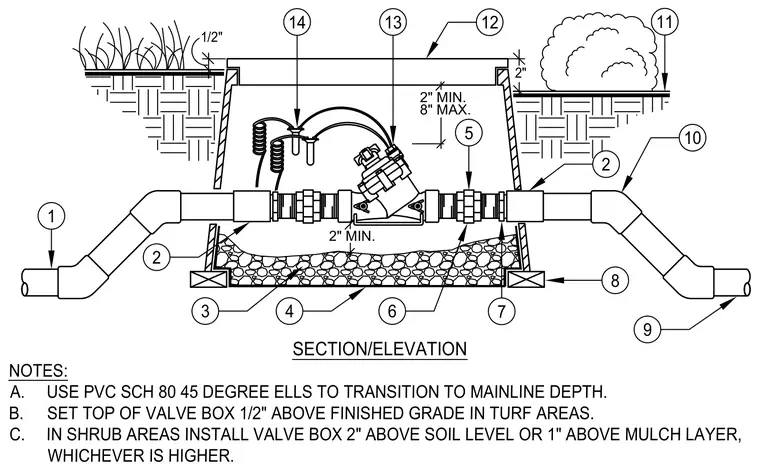

An underground valve box houses an inline valve connected to polyvinyl chloride schedule 80 piping using PVC schedule 80 nipples with a minimum and maximum length. The assembly rests on a gravel bedding layer over compacted subgrade. Polyvinyl chloride schedule 80 forty-five-degree elbows transition the mainline depth outside the box. The valve box cover is set one-half inch above finished grade in turf areas and two inches above soil level or one inch above the mulch layer in shrub areas.
2" MIN. 2" MIN. 8" MAX. SECTION/ELEVATION NOTES: A. USE PVC SCH 80 45 DEGREE ELLS TO TRANSITION TO MAINLINE DEPTH. B. SET TOP OF VALVE BOX 1/2" ABOVE FINISHED GRADE IN TURF AREAS. C. IN SHRUB AREAS INSTALL VALVE BOX 2" ABOVE SOIL LEVEL OR 1" ABOVE MULCH LAYER, WHICHEVER IS HIGHER. 1 2 3 4 6 7 5 2 8 9 14 13 12 11 10 2" 1/2"
