Polymer Feed Pump Control Loop and Ethernet Connection Diagram

About this detail

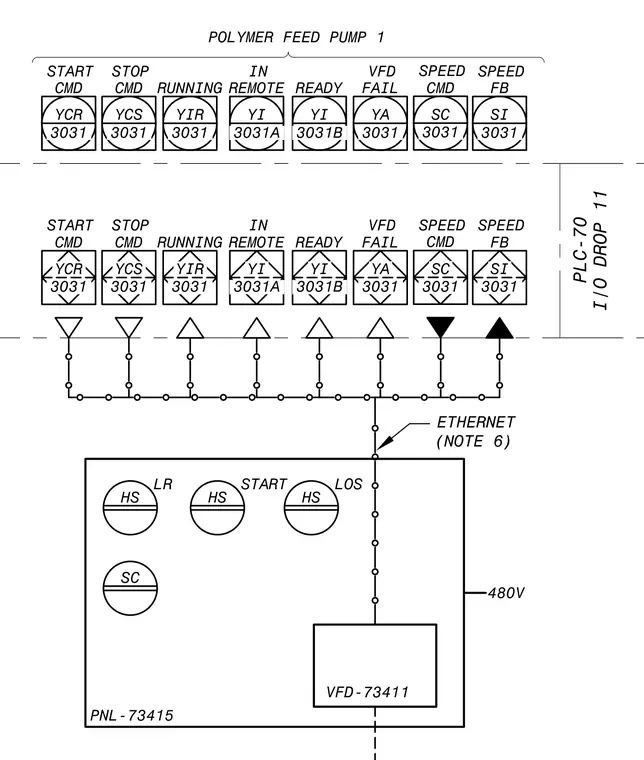

Polymer Feed Pump 1 connects to a 480V variable frequency drive within a control loop and Ethernet communication network. Signal and command indicators include start, stop, running, remote, ready, variable frequency drive fail, speed command, and speed feedback points linked to PLC 70 input/output drop 11. Panel 73415 houses local-remote, start, and local-stop switches alongside variable frequency drive 73411. Ethernet cabling connects the local control panel to the overarching control architecture per note 6.
