Glulam Column Base Detail at Tile

Materials

Elements

About this detail

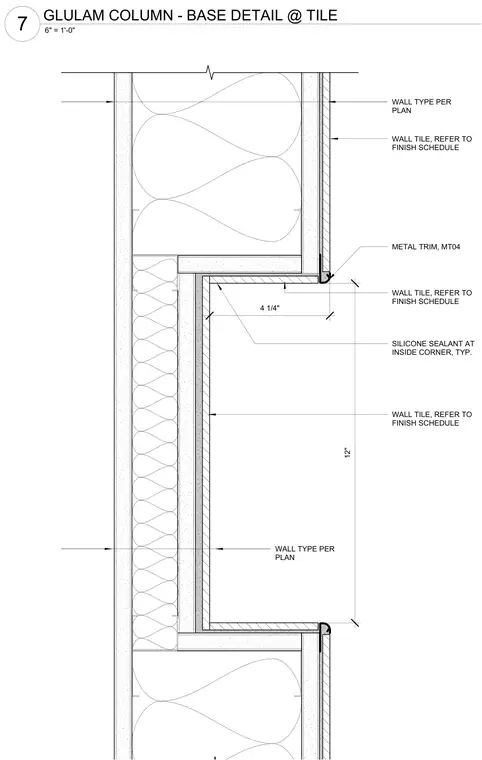

This interior architectural detail shows the intersection of a glulam column and adjacent wall framing finished with wall tile. The assembly features wall types per plan with batt insulation and gypsum board backing, finished on the exterior face with wall tile per finish schedule. A metal trim piece (MT04) finishes the edge of the tile work, with silicone sealant applied at the inside corner typical. Dimensions of four and one-quarter inches and twelve inches detail the tile reveal and spacing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
