Millwork Island Short Overhang Section

Materials

Elements

Walls Partitions Arches Millwork / Casework Roof / Floor Openings

About this detail

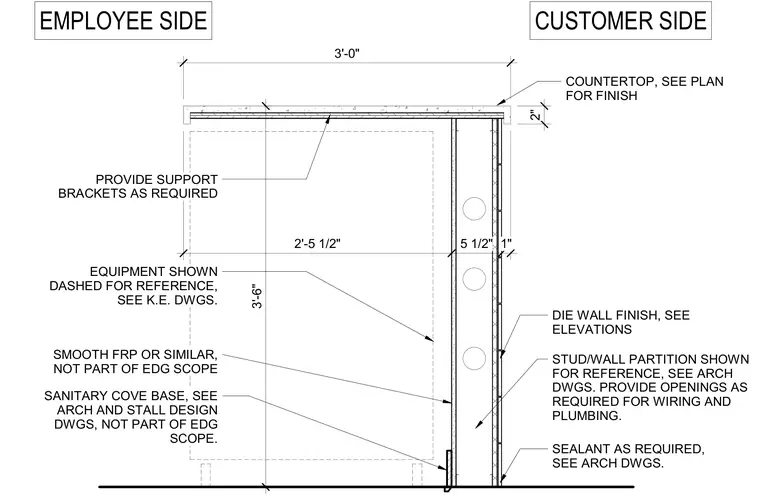

This interior section details a service island counter with a three-foot overall width and a short overhang on the customer side. The assembly is framed by a stud wall partition measuring five and one-half inches in thickness, with internal openings provided for wiring and plumbing routes. Support brackets are included underneath the countertop as required, extending from the partition to the edge of the overhang. The customer side features a die wall finish and sealant, while the employee side accommodates dashed reference equipment and a smooth fiber-reinforced plastic finish. A sanitary cove base is detailed at the floor intersection per architectural and stall design drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
