Rain Bird Operino Operation Indicator

About this detail

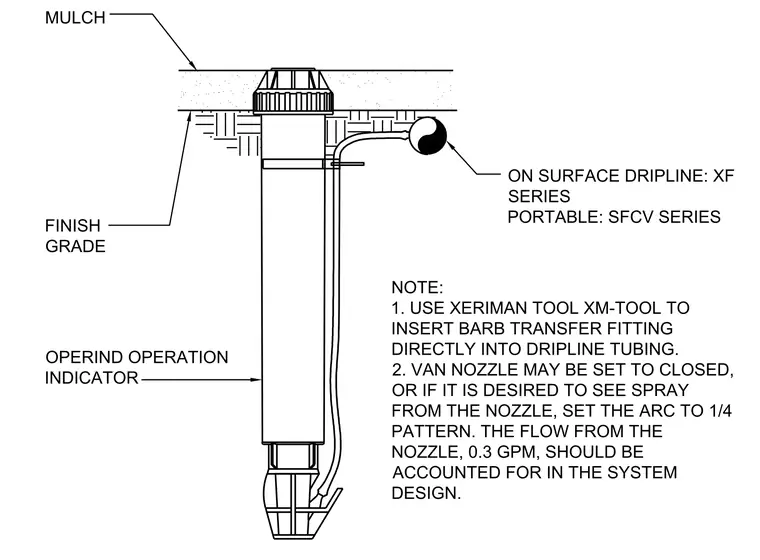

An operation indicator is installed below the mulch layer and finish grade, connected to an on-surface dripline. The XF series dripline and SFCV series portable components link directly to the assembly. A barb transfer fitting is inserted into the dripline tubing using a specialized tool. The nozzle arc can be adjusted to a one-quarter pattern or set to closed, accounting for a specific flow rate in the system design.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
