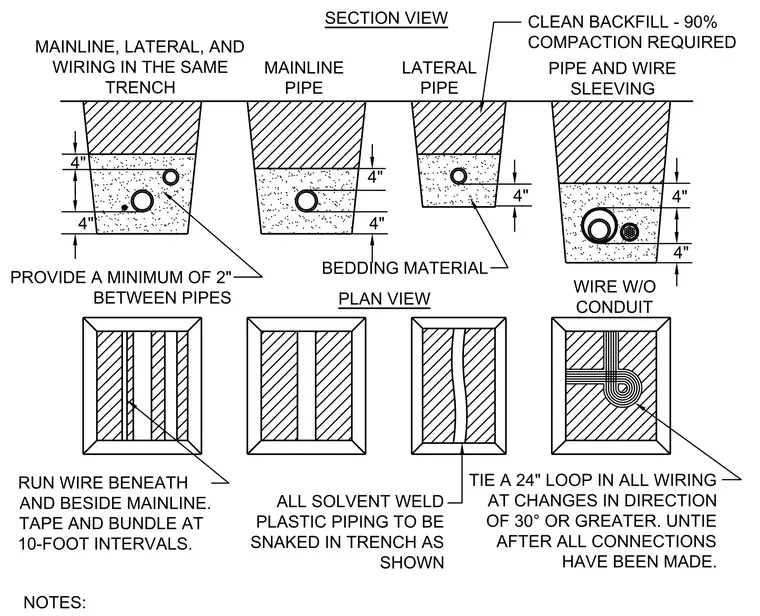

Mainline pipes, lateral pipes, and wire sleeving are installed within a common trench surrounded by bedding material and clean backfill compacted to ninety percent. A minimum clearance of two inches is maintained between pipes, with wire routed beneath and beside the mainline and taped and bundled at ten-foot intervals. All solvent weld plastic piping is snaked within the trench. A twenty-four-inch slack loop is tied in all wiring at direction changes of thirty degrees or greater and untied after all connections are complete.
SECTION VIEW PLAN VIEW NOTES: MAINLINE, LATERAL, AND WIRING IN THE SAME TRENCH MAINLINE PIPE LATERAL PIPE PIPE AND WIRE SLEEVING WIRE W/O CONDUIT PROVIDE A MINIMUM OF 2" BETWEEN PIPES RUN WIRE BENEATH AND BESIDE MAINLINE. TAPE AND BUNDLE AT 10-FOOT INTERVALS. ALL SOLVENT WELD PLASTIC PIPING TO BE SNAKED IN TRENCH AS SHOWN TIE A 24" LOOP IN ALL WIRING AT CHANGES IN DIRECTION OF 30° OR GREATER. UNTIE AFTER ALL CONNECTIONS HAVE BEEN MADE. 4" 4" 4" 4" 4" 4" 4" BEDDING MATERIAL CLEAN BACKFILL - 90% COMPACTION REQUIRED
