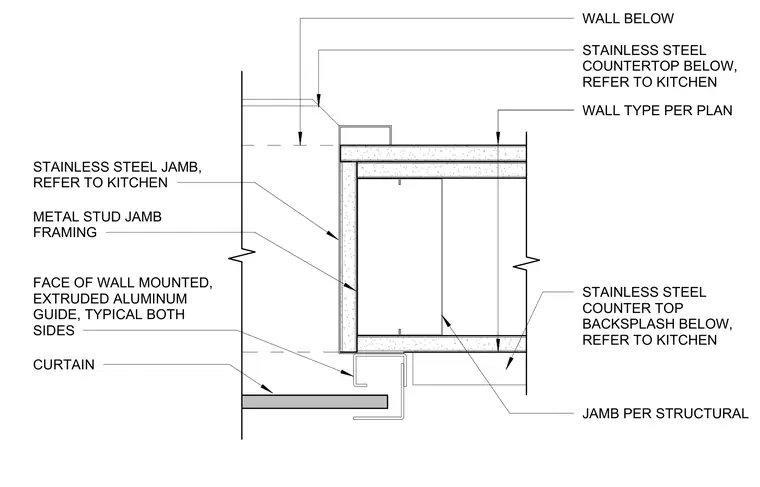

An extruded aluminum guide is mounted to the face of the wall on both sides of the coiling door curtain. The jamb is supported by metal stud framing with a stainless steel jamb trim piece. A stainless steel countertop and backsplash align with the wall assembly, which is sized per plan.
FACE OF WALL MOUNTED, EXTRUDED ALUMINUM GUIDE, TYPICAL BOTH SIDES WALL TYPE PER PLAN STAINLESS STEEL COUNTERTOP BELOW, REFER TO KITCHEN WALL BELOW STAINLESS STEEL JAMB, REFER TO KITCHEN METAL STUD JAMB FRAMING CURTAIN STAINLESS STEEL COUNTER TOP BACKSPLASH BELOW, REFER TO KITCHEN JAMB PER STRUCTURAL
