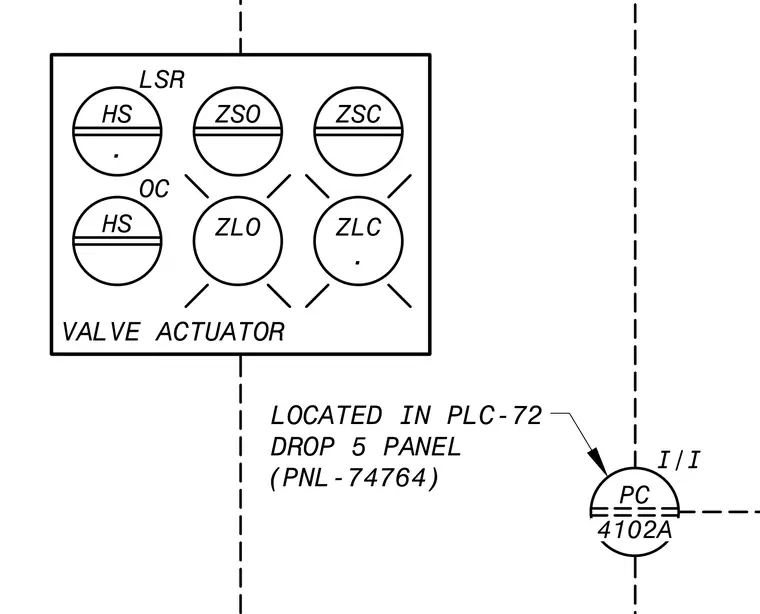

The valve actuator diagram details control and status points including hand switch LSR, hand switch OC, valve open limit switch ZSO, valve closed limit switch ZSC, valve open indicator ZLO, and valve closed indicator ZLC. The signal routes to process control tag PC 4102A, which is located in PLC-72 drop 5 panel PNL-74764.
HS OC VALVE ACTUATOR ZSO ZLO ZSC . ZLC HS . LSR PC 4102A I/I LOCATED IN PLC-72 DROP 5 PANEL (PNL-74764)
