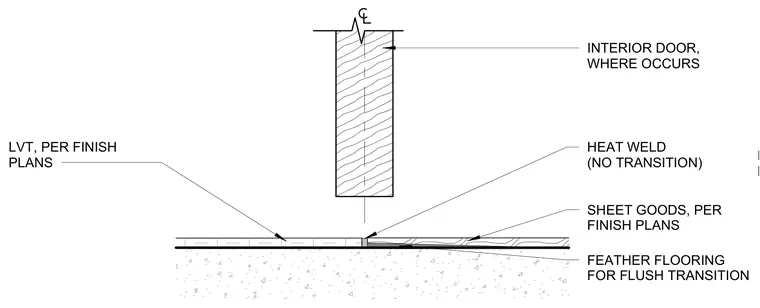

Luxury vinyl tile and resilient sheet goods meet at a flush floor transition located beneath an interior door where it occurs. The adjacent flooring materials are installed over a feathered substrate to maintain a level surface. A heat weld joins the abutting edges without requiring a physical transition strip. Floor tile and sheet goods are sized per the finish plans.
FLOOR TILE, PER FINISH PLANS HEAT WELD (NO TRANSITION) LVT, PER FINISH PLANS SHEET GOODS, PER FINISH PLANS INTERIOR DOOR, WHERE OCCURS FEATHER FLOORING FOR FLUSH TRANSITION
