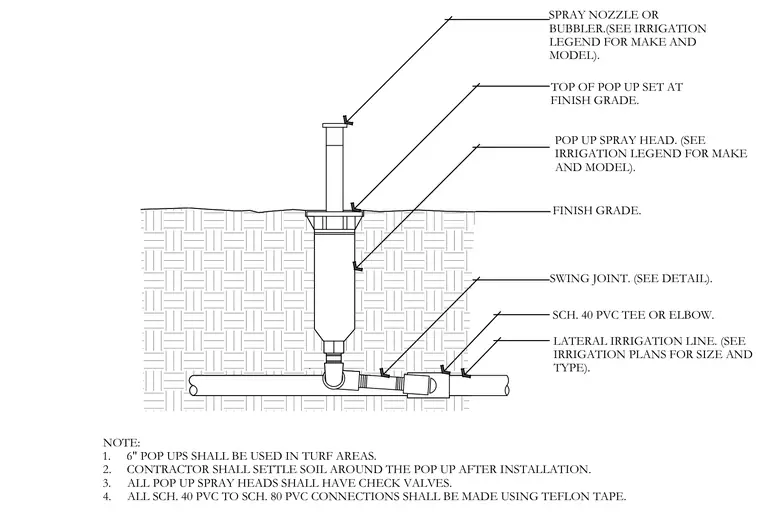

A pop-up spray head or bubbler connects to a Schedule 40 PVC tee or elbow on a lateral irrigation line via a swing joint. The top of the pop-up is set flush with the finish grade. Six-inch pop-ups are specified for turf areas, and all spray heads must include check valves. Connections between Schedule 40 and Schedule 80 PVC require Teflon tape, and the surrounding soil must be properly settled after installation.
SCH. 40 PVC TEE OR ELBOW. NOTE: 1. 6" POP UPS SHALL BE USED IN TURF AREAS. 2. CONTRACTOR SHALL SETTLE SOIL AROUND THE POP UP AFTER INSTALLATION. 3. ALL POP UP SPRAY HEADS SHALL HAVE CHECK VALVES. 4. ALL SCH. 40 PVC TO SCH. 80 PVC CONNECTIONS SHALL BE MADE USING TEFLON TAPE. SPRAY NOZZLE OR BUBBLER.(SEE IRRIGATION LEGEND FOR MAKE AND MODEL). TOP OF POP UP SET AT FINISH GRADE. POP UP SPRAY HEAD. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL). LATERAL IRRIGATION LINE. (SEE IRRIGATION PLANS FOR SIZE AND TYPE). SWING JOINT. (SEE DETAIL). FINISH GRADE. I
