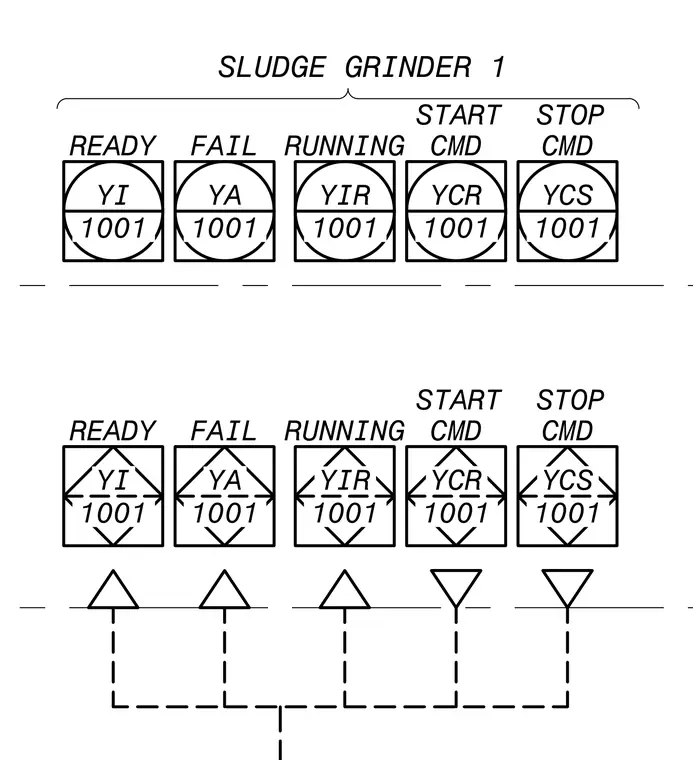

Control logic diagram for sludge grinder 1 detailing status indicators and command signals. The loop includes ready status YI 1001, fail alarm YA 1001, running status YIR 1001, start command YCR 1001, and stop command YCS 1001. Each point is mapped with corresponding tag numbers and terminal connection symbols.
YIR 1001 RUNNING YIR 1001 RUNNING YI 1001 READY YI 1001 READY YCR 1001 CMD START YCR 1001 CMD START YCS 1001 CMD STOP YCS 1001 CMD STOP YA 1001 FAIL YA 1001 FAIL SLUDGE GRINDER 1
