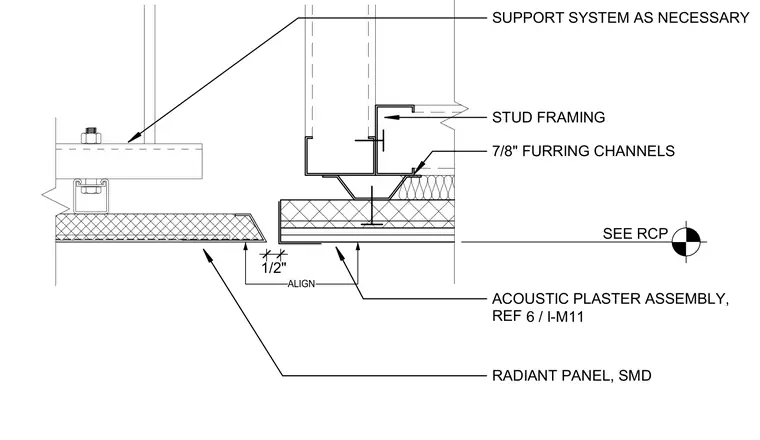

An acoustic plaster assembly aligns with a radiant panel supported by a specialized SMD system. Seven-eighths-inch furring channels attach to stud framing to support the ceiling layers. Support systems are provided as necessary above the assembly. A half-inch alignment gap separates the acoustic plaster from the radiant panel.
SEE RCP ACOUSTIC PLASTER ASSEMBLY, REF 7/8" FURRING CHANNELS STUD FRAMING RADIANT PANEL, SMD SUPPORT SYSTEM AS NECESSARY 1/2" 6 / I-M11 ALIGN
