Phenolic Laminate Locker Section with Sloped Top

Materials

Metal (misc.)

Elements

Millwork / Casework Reinforcing

Connections

Rebar Splice / Development

About this detail

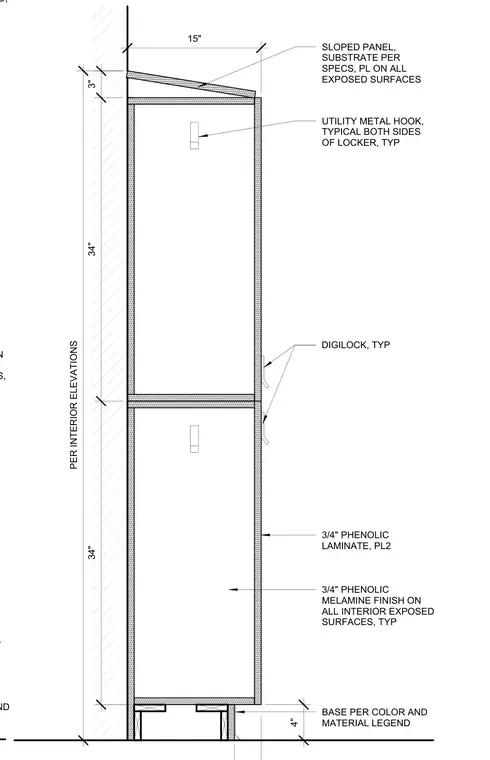

This vertical section details a multi-tier locker constructed from three-quarter-inch phenolic laminate and particle board with a melamine finish on interior exposed surfaces. The locker features a fifteen-inch deep sloped top panel over a substrate with plastic laminate on all exposed surfaces. Interior sides include utility metal hooks mounted on both sides, and doors are secured with typical digilocks. The unit is elevated on a four-inch base finished per the color and material legend.
