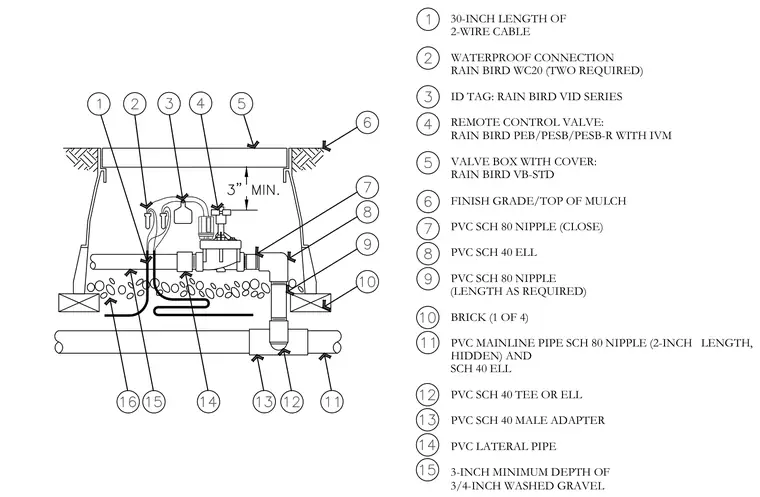

An irrigation remote control valve connects to a PVC mainline pipe through a schedule 80 nipple, a schedule 40 tee or ell, and a schedule 40 male adapter, with a variable-length schedule 80 nipple and schedule 40 ell leading to a lateral pipe. Waterproof connections and a two-wire cable with an identification tag hook up to the valve inside a standard valve box with a cover. The assembly sits on a three-inch minimum depth of three-quarter-inch washed gravel bed surrounded by bricks.
30-INCH LENGTH OF 2-WIRE CABLE WATERPROOF CONNECTION RAIN BIRD WC20 (TWO REQUIRED) ID TAG: RAIN BIRD VID SERIES REMOTE CONTROL VALVE: RAIN BIRD PEB/PESB/PESB-R WITH IVM VALVE BOX WITH COVER: RAIN BIRD VB-STD FINISH GRADE/TOP OF MULCH PVC SCH 80 NIPPLE (CLOSE) PVC SCH 40 ELL PVC SCH 80 NIPPLE (LENGTH AS REQUIRED) BRICK (1 OF 4) PVC MAINLINE PIPE SCH 80 NIPPLE (2-INCH LENGTH, HIDDEN) AND SCH 40 ELL PVC SCH 40 TEE OR ELL PVC SCH 40 MALE ADAPTER PVC LATERAL PIPE 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL © 2 3 1 ) 2 3 (4 5 © 6 m W 5 T 7 i 6 8 © 9 £ 9 .10, §9fioi3 ^om^gsgro > c 16 15 14. 1 3 1 2 1 1
