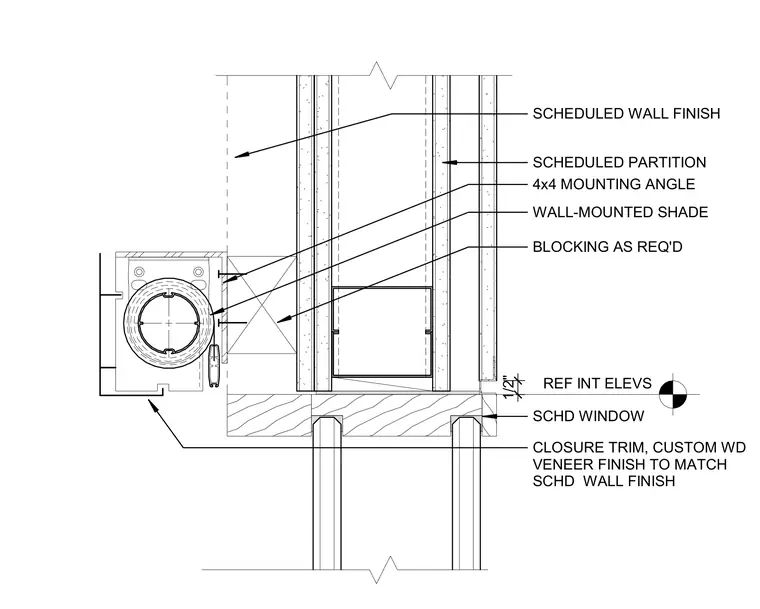

A wall-mounted window shade is anchored to wood blocking as required within a partition framing assembly using a four-by-four mounting angle. A custom wood veneer closure trim matches the scheduled wall finish at the perimeter. The shade housing sits adjacent to the scheduled window head with a half-inch closure trim detail.
REF INT ELEVS SCHEDULED PARTITION SCHD WINDOW WALL-MOUNTED SHADE 1/2" CLOSURE TRIM, CUSTOM WD VENEER FINISH TO MATCH SCHD WALL FINISH SCHEDULED WALL FINISH BLOCKING AS REQ'D 4x4 MOUNTING ANGLE
