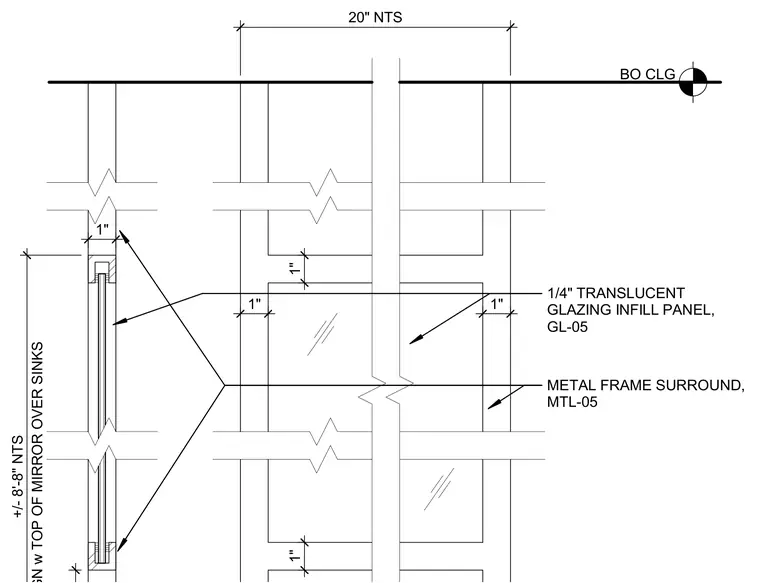

A quarter-inch translucent glazing infill panel is captured within a metal frame surround. The assembly is dimensioned with one-inch edge clearances and a twenty-inch width module, extending downward from the bottom of ceiling line at plus or minus eight feet eight inches. The glass panel GL-05 is set inside metal framing MTL-05.
1/4" TRANSLUCENT GLAZING INFILL PANEL, GL-05 METAL FRAME SURROUND, MTL-05 BO CLG +/- 8'-8" NTS 20" NTS 1" 1" 1" 1" 1"
