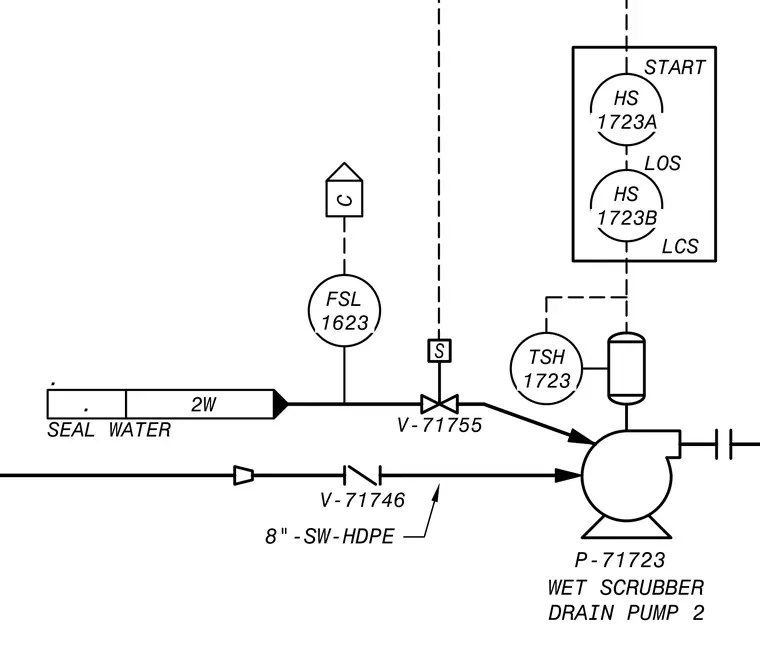

Wet scrubber drain pump P-71723 is connected to an 8-inch high-density polyethylene seal water and drainage line. The system incorporates valve V-71746 and solenoid valve V-71755 along the piping run. Instrumentation includes flow switch low FSL 1623 and temperature switch high TSH 1723. Local control station switches HS 1723A and HS 1723B provide start, local-off-stop, and local-control-selectors functions.
TSH 1723 FSL 1623 S . . SEAL WATER 2W P-71723 WET SCRUBBER DRAIN PUMP 2 V-71746 V-71755 HS 1723B LOS LCS HS 1723A START C 8"-SW-HDPE
