Centrifuge Feed Pump 4 Control Diagram

About this detail

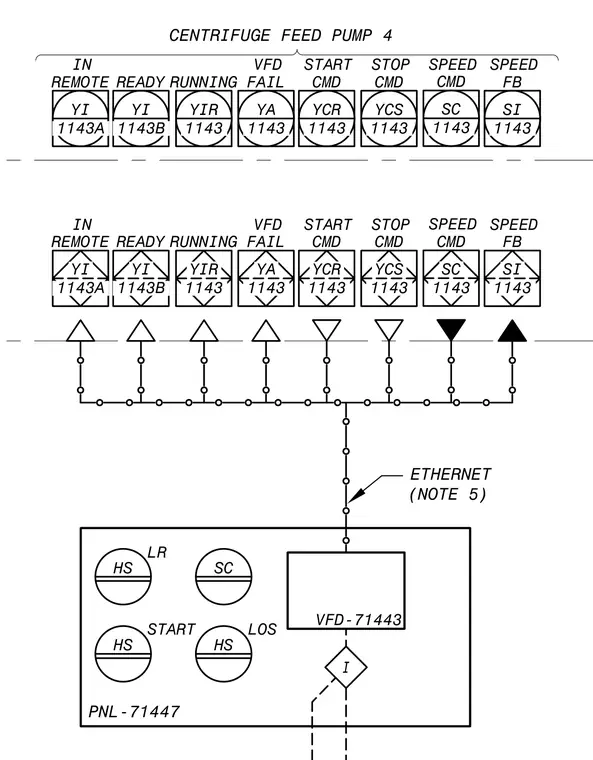

Input and output signal mapping for centrifuge feed pump four connected to variable frequency drive VFD-71443 and control panel Pnl-71447. The schematic includes remote status points, ready and running indicators, VFD failure alarms, start and stop commands, and speed feedback connections routed via ethernet communication. Each signal path is identified with specific tag numbers including YI-1143A, YI-1143B, YIR-1143, YA-1143, YCR-1143, YCS-1143, SC-1143, and SI-1143.
