Drip Control Zone Kit Detail

Elements

Waterproofing / Flashing Connections / Plates

About this detail

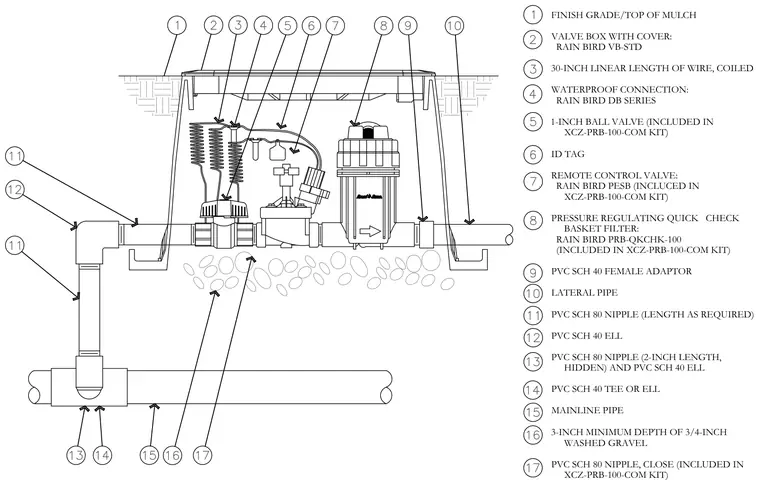

An underground irrigation valve box assembly is situated below the finish grade and top of mulch. The valve box encloses a Rain Bird VB-STD enclosure, coiled waterproof wire connections, a 1-inch ball valve, an ID tag, a remote control valve, and a pressure regulating quick check basket filter. The internal assembly connects to the mainline pipe via PVC Schedule 80 close nipples, PVC Schedule 40 tees or ells, and PVC Schedule 80 nipples of required length. The lateral pipe transitions through PVC Schedule 40 female adapters and PVC Schedule 40 ells. The entire unit rests on a minimum 3-inch depth of 3/4-inch washed gravel base.
