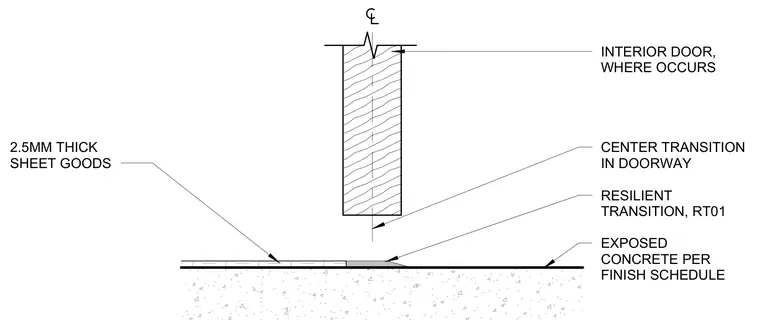

Two-point-five millimeter thick resilient sheet goods terminate at an interior doorway against an exposed concrete floor finished per the finish schedule. A resilient transition strip, designated as RT01, centers beneath the interior door leaf. The transition strip bridges the change in flooring materials directly under the centerline of the door assembly.
EXPOSED CONCRETE PER FINISH SCHEDULE RESILIENT TRANSITION, RT01 2.5MM THICK SHEET GOODS INTERIOR DOOR, WHERE OCCURS CENTER TRANSITION IN DOORWAY
