Wet Scrubber 2 Venturi Throat Pump P-1 Piping and Instrumentation Diagram

About this detail

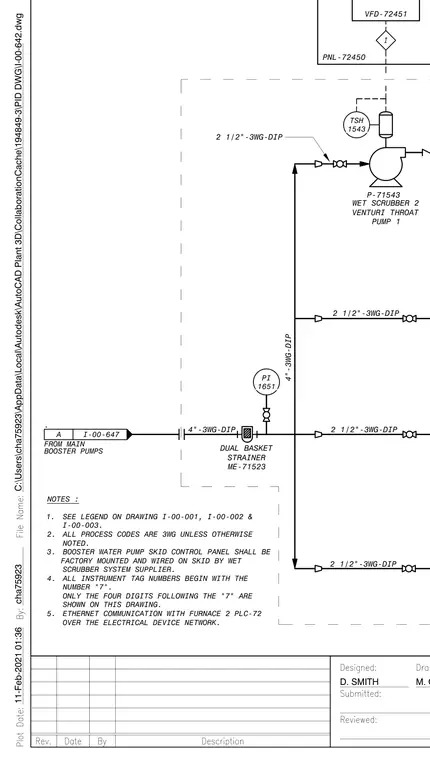

This process and instrumentation diagram details the wet scrubber 2 venturi throat pump system connected to main booster pumps via a 4-inch 3WG-DIP process line. The flow path incorporates a dual basket strainer ME-71523, a pressure indicator PI 1651, and multiple 2 1/2-inch 3WG-DIP branches routing through the pump P-71543. Instrumentation loops include temperature switch TSH 1543 and a variable frequency drive VFD-72451 linked to control panel PNL-72450. General notes specify that all process codes are 3WG unless otherwise noted, all instrument tag numbers begin with the number 7, and the booster water pump skid control panel is factory mounted and wired by the wet scrubber system supplier.
