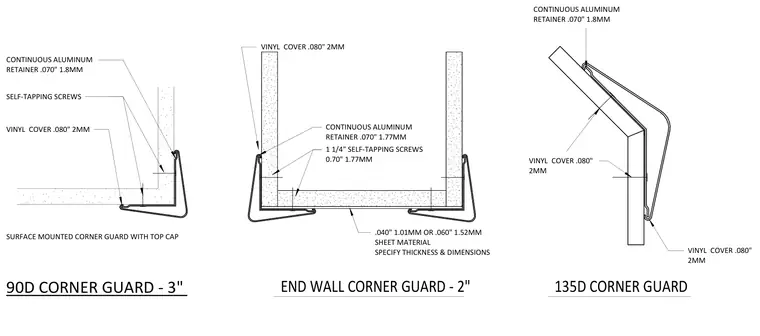

Surface mounted corner guards are installed at interior wall corners using a continuous 0.070-inch aluminum retainer fastened with self-tapping screws. A snap-on vinyl cover measuring 0.080 inches thick clips over the retainer to finish the assembly. The details illustrate configurations for 90-degree 3-inch corners, end wall conditions with sheet material, and 135-degree angled corners.
CONTINUOUS ALUMINUM RETAINER .070" 1.8MM SURFACE MOUNTED CORNER GUARD WITH TOP CAP SELF-TAPPING SCREWS VINYL COVER .080" 2MM 90D CORNER GUARD - 3" VINYL COVER .080" 2MM VINYL COVER .080" 2MM CONTINUOUS ALUMINUM RETAINER .070" 1.8MM VINYL COVER .080" 2MM CONTINUOUS ALUMINUM RETAINER .070" 1.77MM 1 1/4" SELF-TAPPING SCREWS 0.70" 1.77MM .040" 1.01MM OR .060" 1.52MM SHEET MATERIAL SPECIFY THICKNESS & DIMENSIONS 135D CORNER GUARD END WALL CORNER GUARD - 2"
