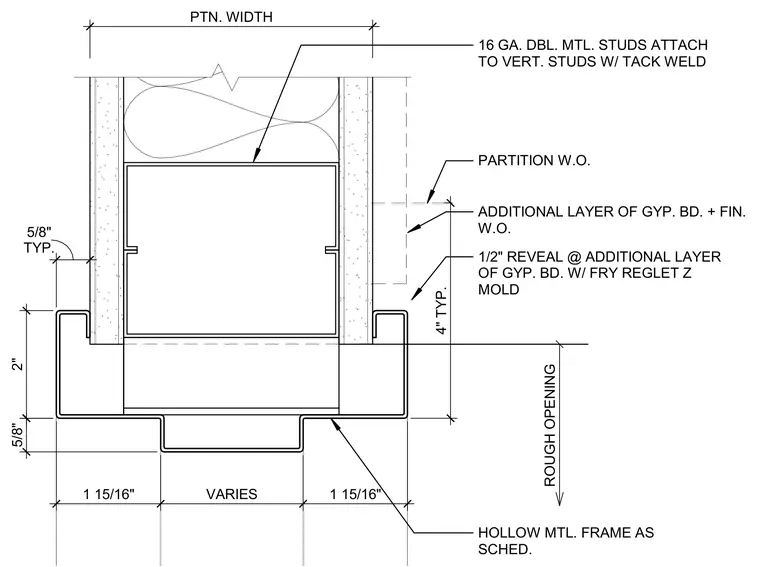

Restroom door jamb assembly at a metal stud partition, featuring a 16-gauge hollow metal frame scheduled per plans. Sixteen-gauge double metal studs attach to vertical studs with tack welds. The surrounding partition is finished with gypsum board layers, including an additional layer of gypsum board and finish with a one-half-inch reveal using a Fry Reglet Z-mold.
PARTITION W.O. TYP. 5/8" 2" 5/8" 1 15/16" VARIES 1 15/16" ADDITIONAL LAYER OF GYP. BD. + FIN. W.O. 1/2" REVEAL @ ADDITIONAL LAYER OF GYP. BD. W/ FRY REGLET Z MOLD 4" TYP. HOLLOW MTL. FRAME AS SCHED. 16 GA. DBL. MTL. STUDS ATTACH TO VERT. STUDS W/ TACK WELD PTN. WIDTH ROUGH OPENING
