Electrical · I-GCH3R

Ash Loadout Facility I/O

Materials

About this detail

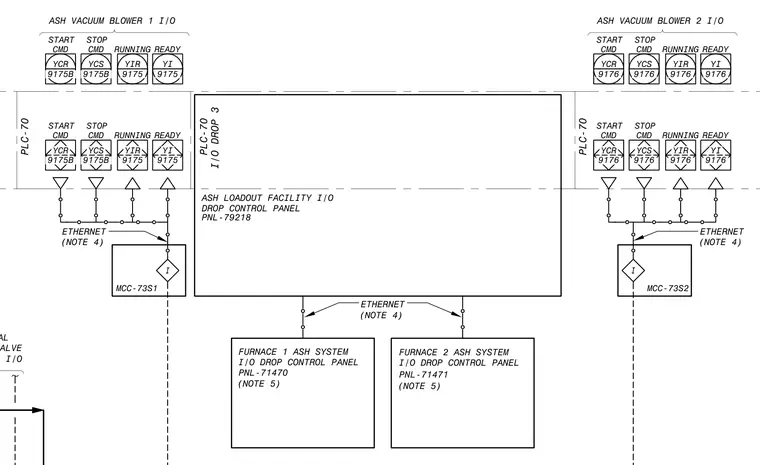

Input and output network connections for the ash loadout facility include PLC-70 and its associated I/O drops. Ash vacuum blower 1 and blower 2 interface with start, stop, running, and ready signals, connecting through Ethernet per note 4 to motor control centers MCC-73S1 and MCC-73S2. Furnace 1 and furnace 2 ash system drop control panels, designated PNL-71470 and PNL-71471 respectively, link back to the central ash loadout facility I/O drop control panel PNL-79218 via Ethernet connections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
